DRUE140

DRUE140

DRUE140

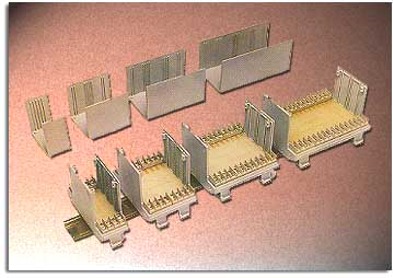

Back to DIN Rail Menu




  • Light gray
  • Horizontal and/or vertical PCBs
  • Mounts on 35mm, 15mm or G-Profile Din Rail
  • Barrier type terminal blocks
  • Max. number of terminals:  32
  • Max. load:  10 Amp

DRUE140

Data Sheet

MATERIAL:
Base: ABS Data sheet
End: Nylon  6.6 Data sheet
Housing: Nylon 6 Data sheet

DIMENSIONS:



 MM IN
W L H W L H
DRUE140: 112 147.5 87.5 4.41 5.81 3.44

Drawing
Component area: 70 140 60 2.76 5.51 2.36
PCB: 108 144  1.6 4.25 5.67 .062

Drawing

OPTIONS: Barrier type screw terminal blocks Data sheet
Machining and printing Data sheet
