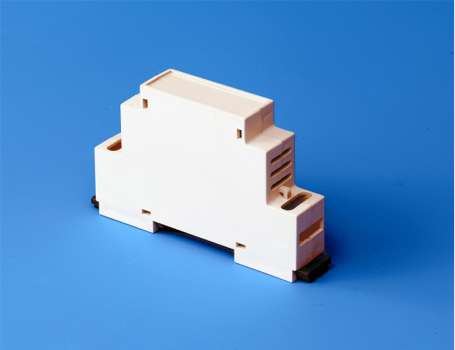

| DR175 | |||||||
| UL FILE NUMBER |
E122538 |
||||||
| MATERIAL: | |||||||
| Housing: | ABS | ||||||
| DIMENSIONS:
|
MM | IN |
|
||||
| W | L | H | W | L | H | ||
| DR175: | 17.5 | 89.2 | 53.0 | .689 | 3.512 | 2.09 | |
| BASE PCB: | 14.6 | 86.6 | 1.6 | .575 | 3.409 | .062 | Drawing |
| UPPER PCB: | 14.6 | 61.6 | 1.6 | .575 | 2.425 | .062 | Drawing |
| SIDE PCB: | 33.9 | 60.5 | 1.6 | 1.335 | 2.382 | .062 | Drawing |
| OPTIONS: | |||||||
| Screw type terminal blocks | Data sheet | ||||||
| Pluggable terminal blocks | Data sheet | ||||||
| Machining and printing | Data sheet | ||||||
