eljkt
  • Gray, Black, PC bone
  • Flush, textured or recessed, smooth cover.
  • Custom machining and printing available.
JKT

Data Sheet
MATERIAL:

ABS

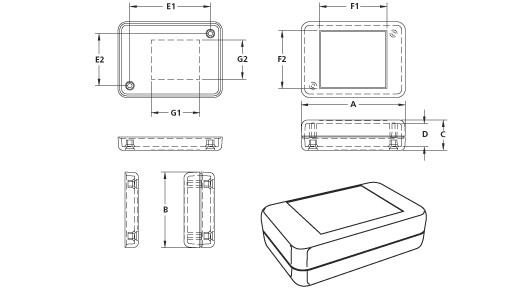

  A

B

C

 D E1 E2 F1 F2 G1 G2
JKT-35 2.500 1.625 .800 .614 1.875 1.000 1.530 1.280 1.280 1.030 Drawing
JKT-40 2.750 2.000 .800 .614 2.125 1.375 1.780 1.530 1.280 1.030 Drawing
JKT-45 3.520 1.770 .735 .535 2.940   2.500 1.440 1.750 1.250 Drawing
JKT-70 5.500 2.000 .815 .614 4.880 1.375 3.780 1.530 1.780 1.030 Drawing
OPTIONS: Machining and printing Data sheet
