futura

FUTURA



Back to Panel Mount Menu


  • ABS in White, Black or Dark Gray or Polycarbonate in White
  • Panel flush mounting
  • Cassette mounts from front
  • Ventilation available
  • Max. temperature:  80o C
  • Max. load:  10 Amp

FUTURA

Data Sheet


MATERIAL:
Case: ABS or Lexan 943 UL94 V0
Front and Plain Back Plates ABS or Lexan 943 UL94 V0
Back Plates ABS or Lexan 943 UL94 V0

DIMENSIONS:



MM IN



W H L W H L
FUTURA: 96 96 110 3.78 3.78 4.33

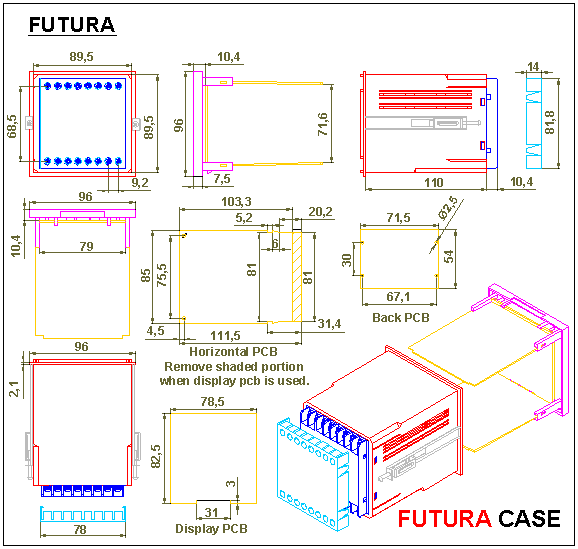

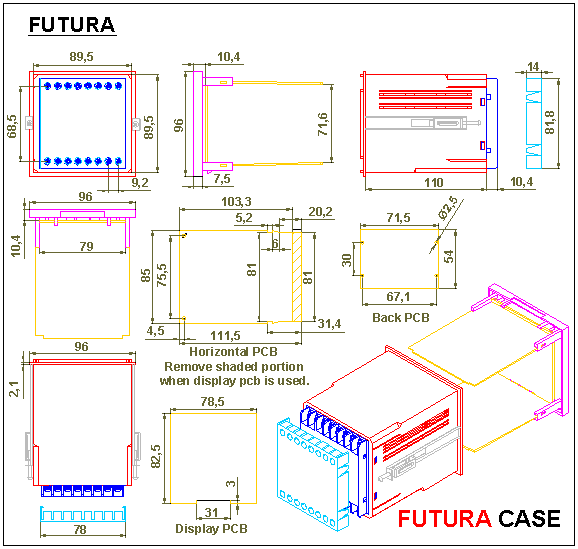

Drawing



COMPLETE CASES

FIC-96-03 Complete Set with Wire Jumper Back Plate w/o Terminal cover & PCBs
FIC-96-04 Complete Set with Surface Mount Back Plate w/o Terminal cover & PCBs
FIC-96-05 Complete Set with Plug-In Back Plate w/o Terminal cover & PCBs

INDIVIDUAL PARTS

FIC-96-01 Case only in Dark Gray / Black / White Color
FCL Panel Mounting Clamps Pair
FFP-96-01 Front Plate Plain
FBP-96-01 Back Plate Wire Jumper Type
FBP-96-02 Back Plate Surface Mount Type
FBP-96-03 Back Plate Plug-In Type
FTC-96 Terminal Transparent Protection Cover
FTL Terminal Lug and screw set for wire Jumper / Surface Mount
FPH-96-1 PCB Horizontal Lon
FPH-96-2 PCB Horizontal Short
FBH-96-1 Bakelite Sheet Horizontal Long
FBH-96-2 Bakelite Sheet Horizontal Short
FPD-96 Display PCB
FPB-96 Back Plate PCB
FTP Dummy terminal plugs
  Machining and printing Data sheet
