| PMIC072 | |||||||
| MATERIAL: | |||||||
| Case: | ABS | ||||||
| Front and Plain Back Plates | ABS | ||||||
| Back Plates | Nylon | ||||||
| DIMENSIONS:
|
MM | IN |
|
||||
| W | H | L | W | H | L | ||

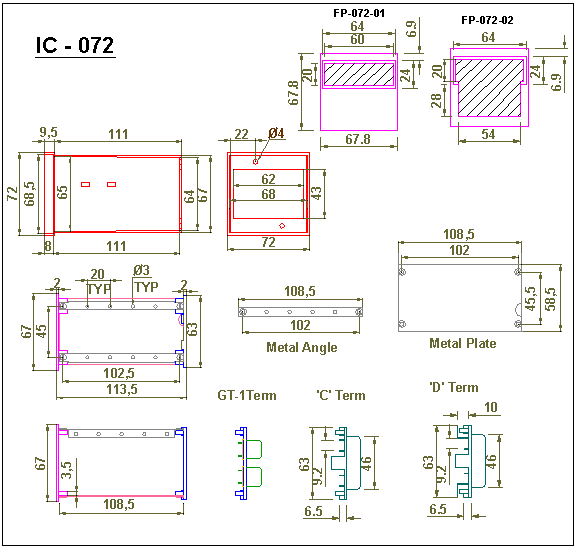

| PMIC072: | 72 | 72 | 110 | 2.84 | 2.84 | 4.33 | |
|
COMPLETE CASES |
|||||||
| PMIC-072-01 | Case only in Black gloss Color | ||||||
| PMIC-072-02 | Case + Clamps | ||||||
| PMIC-072-03 | Case +Clamps + Cassette ‘A’ type (FP, BP plain & Metal plate) | ||||||
| PMIC-072-04 | Case + Clamps + Cassette ‘B’ type (FP, BP with 8 GT-1 Term, & Metal plate) | ||||||
| PMIC-072-05 | Case + Clamps + Cassette ‘C’ type (FP with display cutout, BP with integral ‘C’ – Wire Jumper Max 8Term & Metal plate) | ||||||
| PMIC-072-06 | Case + Clamps + Cassette ‘D’ type (FP with display cutout, BP with integral ‘D’ – PCB Insertion Max 8Term) | ||||||
|
INDIVIDUAL PARTS |
|||||||
| ICCL-100 | Clamps 100mm Long for IC-110,150,148,048,072 | ||||||
| FP-72-00 | Front Plate Plain for 7272 case in A & B Type Cassette | ||||||
| BP-72-00 | Back Plate Plain for 72×72 case in A & B Type Cassette | ||||||
| FP-72-01,02 | Front Plate With Display Cut out Type – 01,02 | ||||||
| BP-72-01 | Back Plate for integral ‘C’ & ‘D’ type term, w/o Term. Connectors | ||||||
| MPL – 72 | Metal Plate for 110 mm depth Case in IC-072 | ||||||
| MAG – 110 | Metal Angels for 110 mm depth case in IC-110/148/072 | ||||||
| RTS-72-01 | Red Transparent Sheet for FP-72-01 | ||||||
| TC-C | Term. Connectors C Type Loose | ||||||
| TC-D | Term. Connectors D Type Loose | ||||||
| DCT | Dust Cover for Term. Replacement in B.P. | ||||||
| GT-1 | Term. Add On Type for B Type Connection per way | ||||||
| GT-1Pcb | PCB for GT-1 Term. Mounting per way available for 2 to 8 ways | ||||||
| SW-72 | Screw set Std for IC-072 | ||||||
| TC-72 | Terminal Transparent Protection Cover for 72 x 72 case | ||||||
| Machining and printing | Data sheet | ||||||
