| PMIC148 | |||||||
| MATERIAL: | |||||||
| Case: | ABS | ||||||
| Front and Plain Back Plates | ABS | ||||||
| Back Plates | Nylon | ||||||

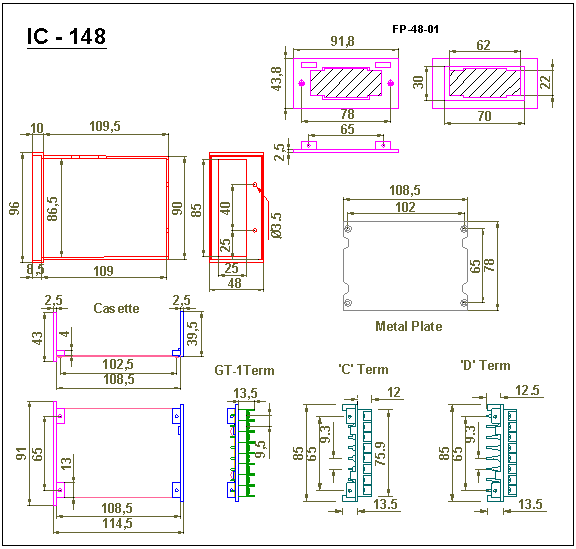

| DIMENSIONS:
|
MM | IN |
|
||||
| W | H | L | W | H | L | ||
| PMIC148: | 48 | 96 | 110 | 1.89 | 3.78 | 4.33 | |
|
COMPLETE CASES |
|||||||
| PMIC-148-01 | Case only in Black gloss Color | ||||||
| PMIC-148-02 | Case + Clamps | ||||||
| PMIC-148-03 | Case +Clamps + Cassette ‘A’ type (FP, BP plain & Metal plate) | ||||||
| PMIC-148-04 | Case + Clamps + Cassette ‘B’ type (FP, BP with 8 GT-1 Term, & Metal plate) | ||||||
| PMIC-148-05 | Case + Clamps + Cassette ‘C’ type (FP with display cutout, BP with integral ‘C’ – Wire Jumper Max 8Term & Metal plate) | ||||||
| PMIC-148-06 | Case + Clamps + Cassette ‘D’ type (FP with display cutout, BP with integral ‘D’ – PCB Insertion Max 8Term) | ||||||
|
INDIVIDUAL PARTS |
|||||||
| ICCL-100 | Clamps 100mm Long for IC-110,150,148,048,072 | ||||||
| FP-48-00 | Front Plate Plain for 96×48 case in A & B Type Cassette | ||||||
| BP-48-00 | Back Plate Plain for 96×48 case in A & B Type Cassette | ||||||
| FP-48-01 | Front Plate With Display Cut out Type – 01 | ||||||
| BP-48-01 | Back Plate for integral ‘C’ & ‘D’ type term, w/o Term. Connectors | ||||||
| MPL – 110 | Metal Plate for 110 mm depth Case in IC-110/148 | ||||||
| RTS-96-01 | Red Transparent Sheet for FP-48-01 | ||||||
| TC-C | Term. Connectors C Type Loose | ||||||
| TC-D | Term. Connectors D Type Loose | ||||||
| DCT | Dust Cover for Term. Replacement in B.P. | ||||||
| GT-1 | Term. Add On Type for B Type Connection per way | ||||||
| GT-1Pcb | PCB for GT-1 Term. Mounting per way available for 2 to 8 ways | ||||||
| SW-48 | Screw set Std for IC-148, 048 | ||||||
| TC-48 | Terminal Transparent Protection Cover for 96 x 48 cases | ||||||
| Machining and printing | Data sheet | ||||||
